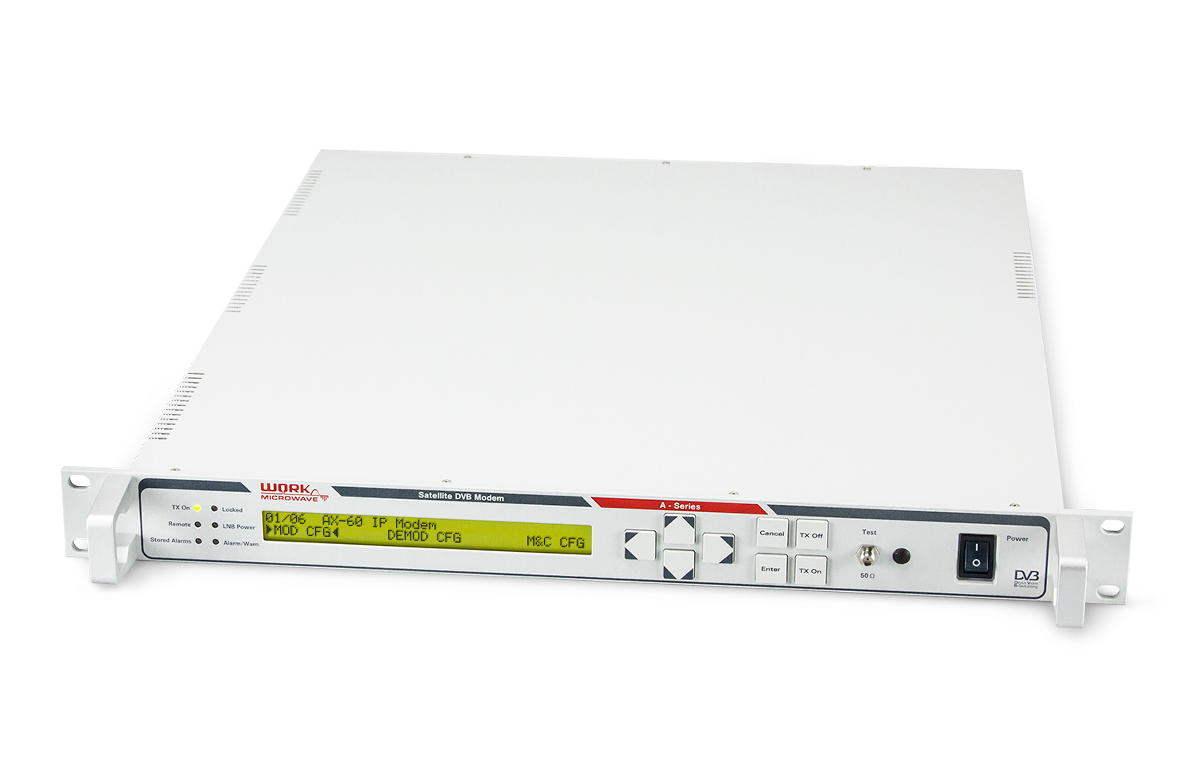

DVB-S2X调制解调器，用于集成封装器的高速IP连接。

AX-61是IP和TS调制解调器。

• DVB-S2X compliant
• modulations up to 256APSK
• Symbolrates 100 ksps to 75 Msps
• Data rate up to 360 Mbps
• IP packet processing up to 80000 pps
• GSE and MPE encapsulation
• Transport Stream over ASI or IP (AX-61)

DVB-S2X调制器，用于集成封装器的高速IP连接。

AT-61是一个IP和TS调制器。

• DVB-S2X compliant
• modulations up to 256APSK
• Symbolrates 100 ksps to 75 Msps
• Data rate up to 360 Mbps
• IP packet processing up to 80000 pps
• GSE and MPE encapsulation
• optional IP and TS (AT-61)

基于CCSDS 131和231的地面站调制解调器与IQ Spacecom XLink空间段收发器的任务通信。

• CCSDS 131.0-B-3 compliant downlink
• CCSDS 231.0-B-3 compliant uplink
• Symbol rates 10 ksps up to 75 Msps
• IQ diagram output
• proven and flexible A-Series SDR architecture
• guaranteed compatibility to IQ Spacecom XLink transceivers

AX-80卫星调制解调器通过每秒千兆位的DVB链路提供全IP连接。10G以太网接口实现了与地面网络的高速集成。实时监控和控制以及强大的IP处理能力支持卫星上快的链路

• DVB-S2X compliant
• modulations up to 256APSK
• Symbolrates up to 500 Msps
• Data rate up to 3 Gbps per direction integrated
• Roll-Off: 35%, 25%, 20%, 15%, 10%, 5%
• Exceptionally clean signal output and internal processing
• Predistortion for automatic group delay and nonlinearity compensation
• Operates as layer 3 bridge or layer 3 router including traffic shaping / QoS functionality
• ACM controller open to various ACM systems
• GSE and MPE encapsulation integrated
• Customizable processing infrastructure for easy integration into large communication systems
• Flexible software architecture for easy extension and future virtualization of functionality

DVB-S2X调制器，用于最高500 Msps的超宽带转发器。

• DVB-S2X compliant
• modulations up to 256APSK
• Symbolrates 5 Msps to 500 Msps
• Data rate up to 3 Gbps
• IP packet processing up to 2 Mpps
• GSE and MPE encapsulation

DVB-S2X解调器，用于最高500 Msps的超宽带转发器。

• DVB-S2X compliant
• modulations up to 256APSK
• Symbolrates 5 Msps to 500 Msps
• Data rate up to 3 Gbps
• IP packet processing up to 2 Mpps
• GSE and MPE encapsulation

AR-80-OPT光学多任务接收机是一种专用于支持光学直接对地链路处理的接收机。它设计用于多任务支持，以实现有效的地面站设计。光学开-关键控（O3K）和高光子效率（HPE）传输可以通过基于硬判决解码或对数似然比（LLR）处理的公共输入进行处理。

• Multi-Mission support
• Hard-decision and soft-decision decoding
• Optical On-Off Keying (O3K)
• High-Photon-Efficiency (HPE) future upgradable extension
• CCSDS 141/142 support future upgradable extension
• O3K symbol rate up to 10 Gsps
• User data rate up to 3 Gbit/s
• Customizable processing infrastructure for easy integration into large communication systems
• Flexible software architecture for easy extension and future virtualization of functionality
• Teleport-grade M&C capabilities for seamless integration into professional ground station systems
• 3 years warranty

AX-62太空任务地面调制解调器是新空间的基本地面站元件。它支持多种标准化CCSDS和DVB波形和协议，利用商业上建立的平台从单个设备集成支持多个空间任务。

软件无线电方法允许快速方便地扩展波形。远程端口级接口可无缝集成到全球地面站系统中。

• CCSDS 231.0-B-3 TC uplinks
• CCSDS 131.0-B-3 TM downlinks
• DVB-S2X – ETSI EN 302 307-2
• DVB-S2 – ETSI EN 302 307-1
• CCSDS 131.3-B-1 CADU frames over DVB-S2
• Symbol rates from 10 ksps to 75 Msps
• Exceptionally clean signal output and internal processing
• Customizable processing infrastructure for easy integration into large communication systems
• Flexible software architecture for easy extension and future virtualization of functionality
• 3 years warranty

DOG-DS自由空间光学探测器是一种用于接收光学自由空间通信的光纤耦合光学探测器。该探测器的特点是具有光纤耦合输入的高响应InGaAs雪崩光电二极管（APD）。放大和有限的输出使其适合于接收关键信号的硬判决。内置一个19英寸机架式安装，包括一个前面板用户接口和通过SNMP和HTTP接口进行的网络访问，可方便地集成到卫星地面站基础设施中。

• High Sensitivity, suitable for space down-link
• Fibre-coupled input for flexible installation
• Various optical wavelength & bandwith options
• 19-inch rack mount unit with remote access interfaces for professional teleport environment

DOG-M1多任务光学调制解调器是一种专用于支持空间和地球之间光学链路处理的调制解调器。它设计用于多任务支持，以实现有效的地面站设计。光学开-关键控（O3K）和高光子效率（HPE）传输可以通过基于硬判决解码或对数似然比（LLR）处理的公共输入进行处理。

• Multi-Mission support
• Hard-decision and soft-decision decoding
• Optical On-Off Keying (O3K)
• High-Photon-Efficiency (HPE) future upgradable extension
• CCSDS 141.0-B-x support
• CCSDS 142.0-B-x support
• O3K symbol rate up to 10 Gsps
• Internal storage for at least 2 LEO passes at maximum bandwidth
• Customizable processing infrastructure for easy integration into large communication systems
• Flexible software architecture for easy extension and future virtualization of functionality
• Teleport-grade M&C capabilities for seamless integration into professional ground station systems

DOG-F1光调制解调器前端增强了DOG-M1多任务光调制解调器。

它对多Gsps信号进行采样，并为光开关键控（O3K）和高光子效率（HPE）传输提供从符号同步到LLR计算的信号处理的早期阶段。

• Multi-Mission support
• Hard-decision and soft-decision decoding
• Optical On-Off Keying (O3K)
• High-Photon-Efficiency (HPE) future upgradable extension
• CCSDS 141.0-B-x support
• CCSDS 142.0-B-x support
• O3K symbol rate up to 10 Gsps
• Customizable processing infrastructure for easy integration into large communication systems
• Flexible software architecture for easy extension and future virtualization of functionality
• Teleport-grade M&C capabilities for seamless integration into professional ground station systems
• 3 years warranty

WORK微波公司的虚拟地面站（VGS）有两个主要的射频信号数字化单元：

DBDC：数字块上变频器（用于上行线路）

DBUC：数字块下变频器（用于下行链路）

DBDC在输入端直接接收来自LNA（或LNB）的天线信号，并将其转换为数字分组。它阻止了从RF到数字基带的下变频。

在输出端，数字基带信号作为DIFI（数字中频互操作性）标准中的IP分组传输到V系列软件调制解调器。

DBUC从V系列软件调制解调器接收数字基带信号作为DIFI标准中的IP分组，并将其转换为RF信号。它阻止了从数字基带到RF的转换。

在输出端，RF信号被发送到HPA，用于放大和卫星上行链路。

• They include block converters (direct S/C/X/Ku/DBS/Ka/Q/V-band port is possible, and IF/L-band as well), with this result: the system is very compact and eliminates additional need for separate frequency converters, redundancy switches, additional RF connection points and signal attenuations.
• They are designed as outdoor type that can be mounted in antenna directly. This feature eliminates the need of big RF shelter near the antenna or saves significant space in terms of system integration.
• Multiple-band options (triple for Ka-band, dual for Ku-Band… as example) for simultaneous Tx and Rx at high/medium/low bands.
• Switchable LO option (selectable high/medium/low… band)
• Lossless transport for IP networks with QoS (Quality of Service) and enough bandwidth.
• Fiber optical output option for block downconverter and input option for block upconverter.
• High operational temperature: -40° to +70° C
